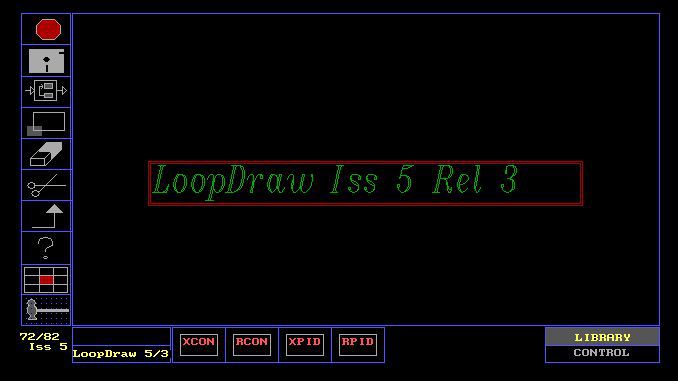

Loopdraw program

The TCS Loopdraw program is a graphical block symbol program used for programming and editing parameters on TCS 63870 and 6380 series controllers. The computer running the Loopdraw program requires a communications lead attached to the RS232 port of the computer and the front socket on the controller. The program can also be used via a RS422 port wired directly to the back terminals of the controller sleeve.

The Loopdraw program also features a TCS 8263 terminal simulator

8280 Loopdraw User Guide
8280_LoopDraw_User_Guide_HA080548U005.pd[...]
Adobe Acrobat document [1.9 MB]
